SPECIFICATIONS
& DIMENSIONS

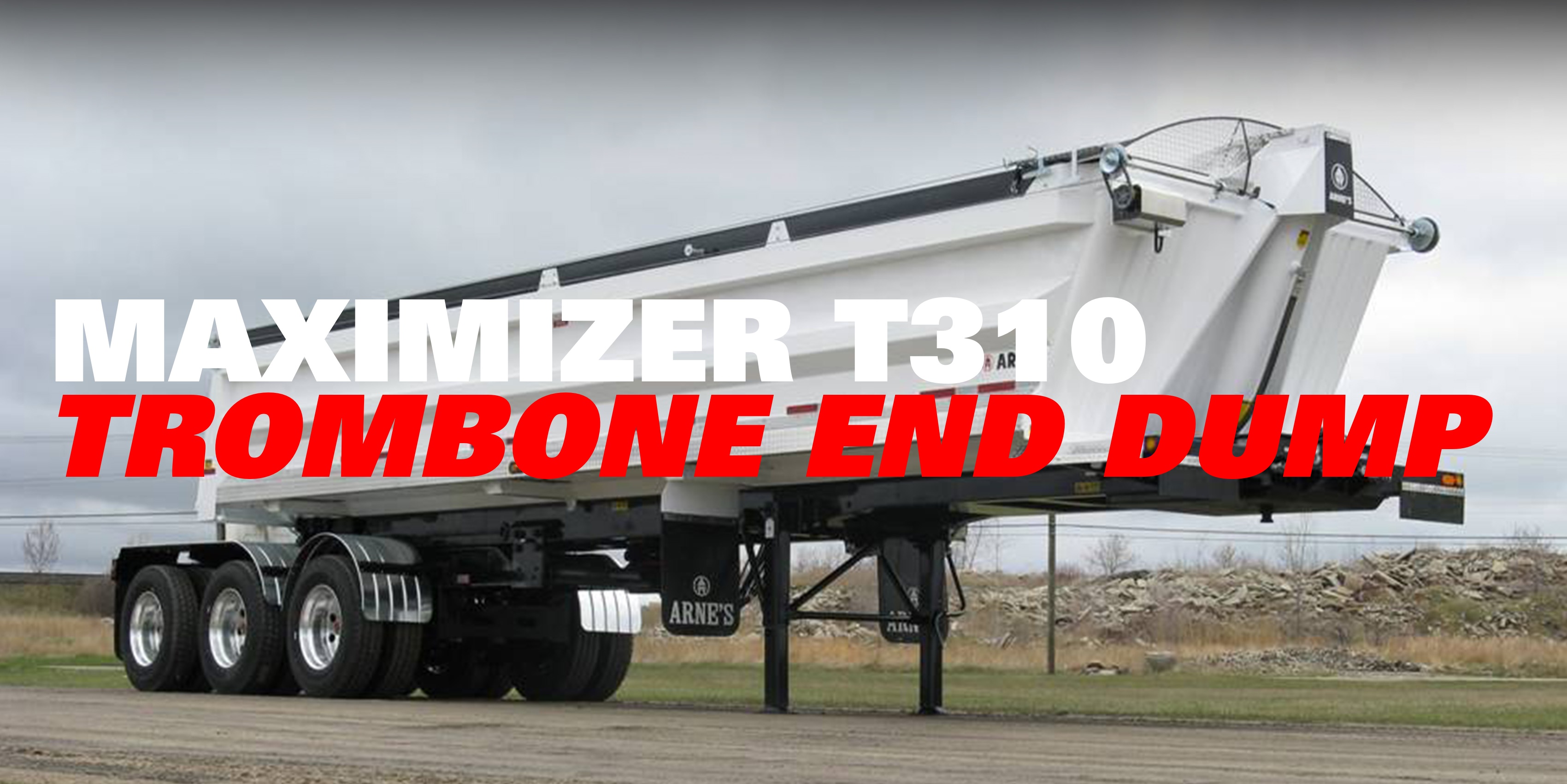

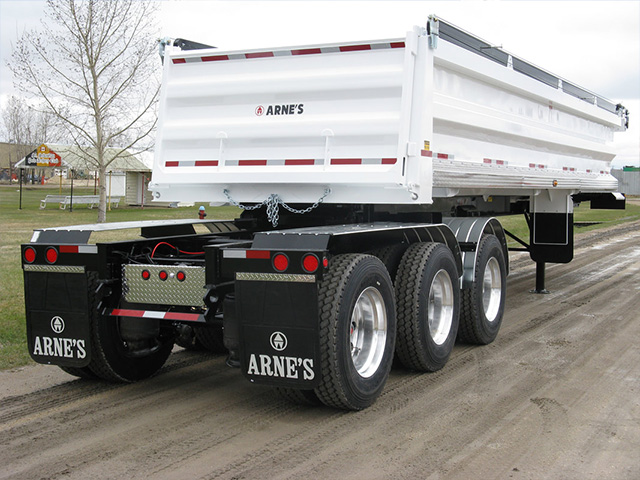

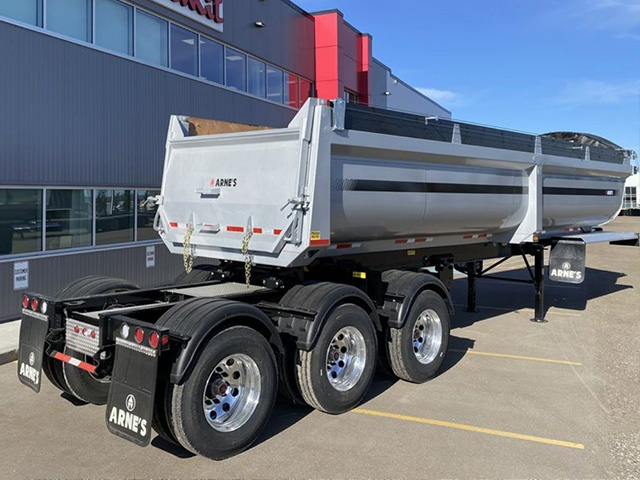

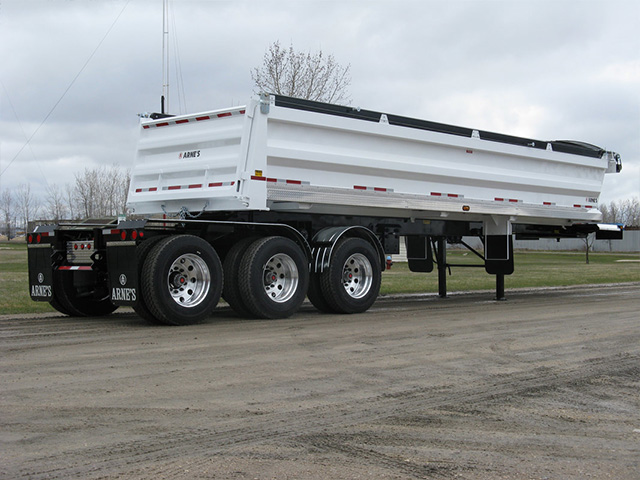

The Arne's Maximizer T310 Trombone Tub End Dump is a lightweight, tri-drive compatible trailer engineered for aggregate, gravel and construction work that offer maximum payload, durability and fast cleanout.

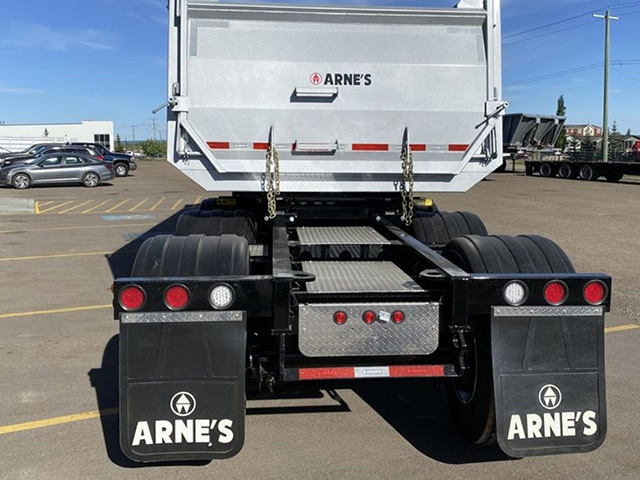

| Overall Height | 8' 6" |
| Overall Length | 10'6" to the top of the plank brackets, with a 50" fifth wheel height |
| Box Length | 374" 31' 3" |
| Box Width | 92" I.D |
| Plank Brackets | Standard two bolt plank brackets for 2" x 12" planks |
| Hoist | 8" head lift telescoping hydraulic cylinder |
| Box Front | 4MM AR450 smooth front wall to provide better dent resistance |
| Box Sides | 4MM AR450 Tub design box |
| Box Floor | 3/16" Abrasive Resistant steel with floor edges rounded 90 degrees up 10" on each side |
| Top Rail | Formed top rib |
| Box Rub Rails | Formed checker plate aluminum rub rails, for weight reduction |
| Box Tipping Sills | 1/4" steel formed hat channel |
| Main Frame Rails | Constructed with T1 steel upper and lower flanges, webs have plasma cut holes |
| Crossmembers | Fabricated I beam webs have plasma cut holes |
| Kingpin Plate | 1/4" steel plate, minimum 48" plate height |
| Tailgate | 4MM AR450 steel formed one piece gate c/w extra long plated spreader chains slotted chain holes on tailgate |
| Kingpin | 4MM AR450 steel formed one piece gate c/w extra long plated spreader chains slotted chain holes on tailgate |
| Suspension | Intraax AA250 Air Ride, 25,000 LB capacity per suspension (Cam Enclosure Included) |
| Axles | 77" track, 25,000 LB capacity per axle, oil seals |
| ABS Brake System | 2S1M |

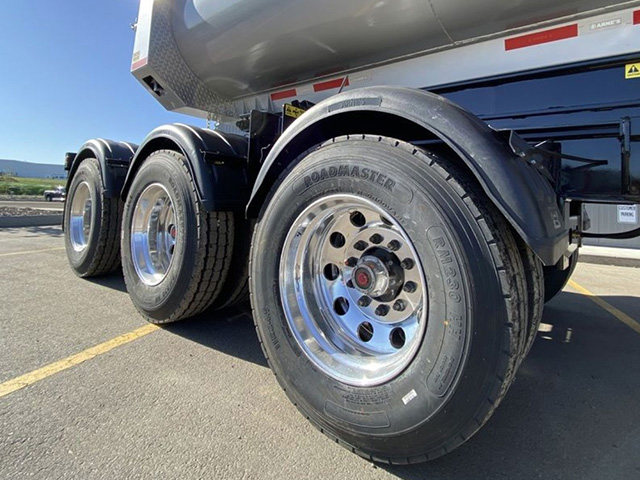

| Wheels | Unimount 10 hole wheels with Dura-Lite hubs and Centrifuse drums |
| Tires | 11R X 24.5 radial tires |
| Parking Legs | Drop-pin style, Telescoping box section, multiple pin settings, bottom handle |
| Side Boards | 2" x 12" Spruce sideboards painted black |
| Bumper | Diagonally braced vertical push bumper with V-notch for blade |
| Ladder | Steel welded to the tailgate |
| Fenders | Aluminum checker plate at front of trailer frame and poly fenders above wheels |
| Box Flaps | Two (2) mudflaps welded off box in front of tires c/w formed anti sail bracket |
| Lights | LED lights with midship turn indicating lamps on box and corner clearance lighting |
