SPECIFICATIONS
& DIMENSIONS

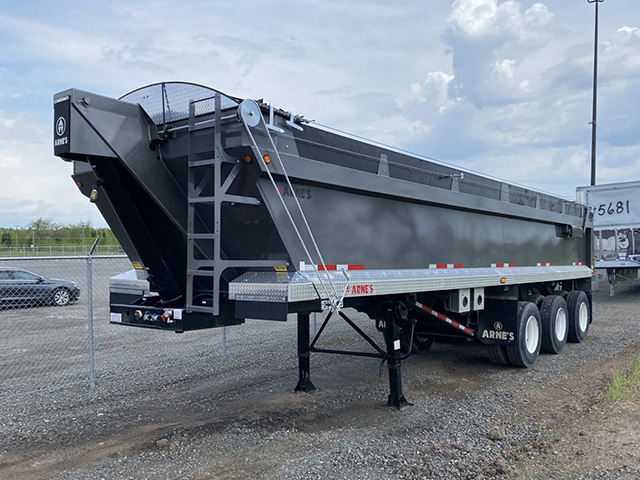

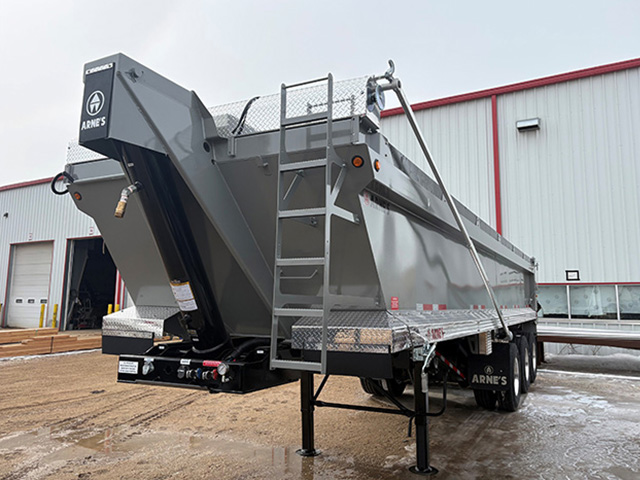

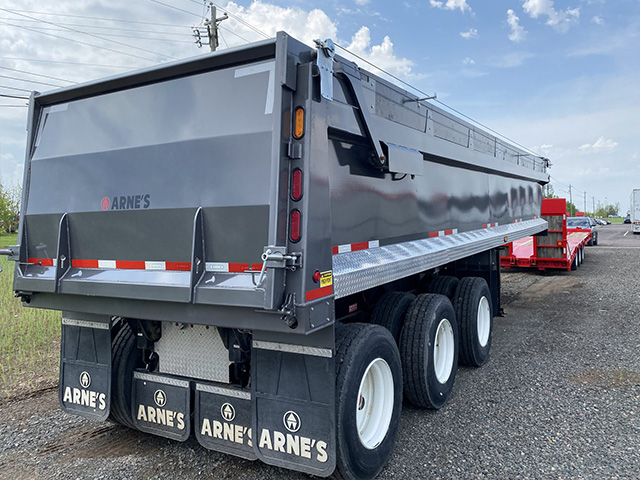

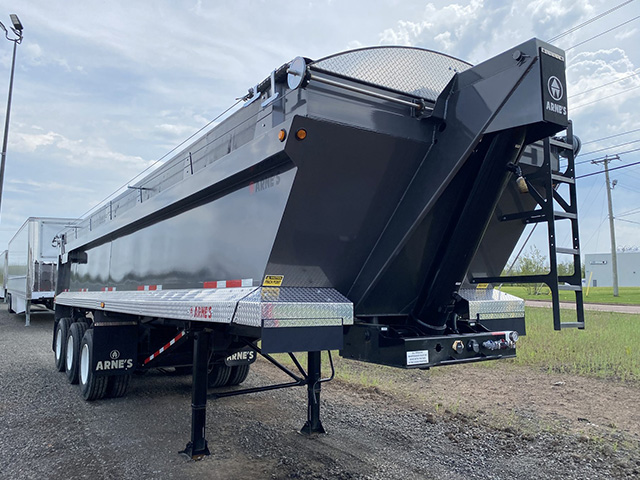

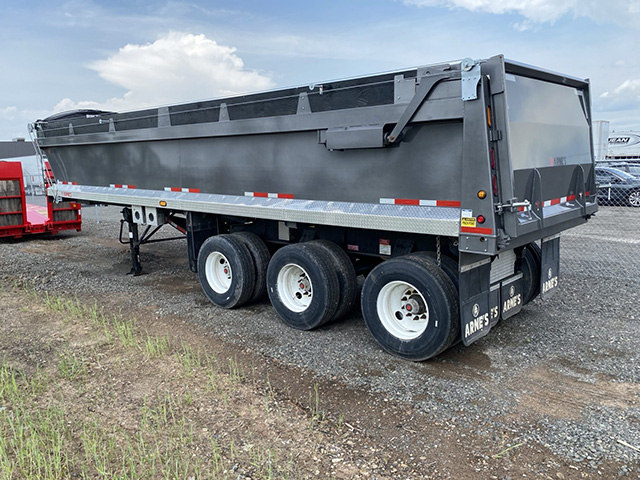

The Arne’s Quarter Frame steel end dumps use a scissor lift versus the full frame cylinder to lift the box. These units, also referred to as “Hybrid” or “Scissor” end dumps have an ideal weight to capacity ratio. Their overhang of 17 inches allows for asphalt work without an asphalt flaps. Typically spec’d with a two way tailgate. With a width of 87” – they are among the largest in the industry. Made with the legendary Arne’s quality and durability.
| Overall Height | 10' 8" with 48 1/2" Ground to Upper Coupler |
| Overall Length | 36' 10" (440") |
| Axle Spread | 60" |
| King pin setting | 15" |
| Upper coupler height | 48" 1/2" |
| Wall height | 46" |
| Overhang | 17" (From tire face to rear of box floor) |
| RTAC Compliant | YES |
| Body Capacity | 35 cubic yards (water level) |
| Hoist | 9", 5 stage, 281" stroke, head lift for approximately 47.5 degree Angle |
| Box Front, Sides & Front | 3/16" AR450 |
| Top Rail | 7" x 5" Tube |
| Tailgate | 3/16" Hardox 450 formed one piece, Full Height Gate to Top of Post with plated spreader chains |
| Ladder | Mounted on Front Wall of Trailer, Left Side |
| Flaps | 2 Box Mounted Mudflaps in Front of Suspension & 2 Mudflaps Below Rear Bumper |
| Boards | 2" x 6" Wood Planks, Painted same colour as frame |
| Suspension | Intraax AA250 Air Ride Suspension w/ RTR Wheel Ends Long Studs |
| Axles | Tapered Spindle, 77 " track, 25,000 pound capacity per axle |
| Brakes | Light Weight Drum, 16.5" x 7" Shoes |
| Wheels | Unimount 10 Hole Steel 8.25x22.5 |
| Tires | Cooper Roadmaster, HH230, 11R22.5 |
| ABS | 2 sensor, 1 module |
| Lights | LED Light Package with Tail Lights in Rear Posts |
| Tailgate Latch | Air Trip with Manual Override |
