SPECIFICATIONS
& DIMENSIONS

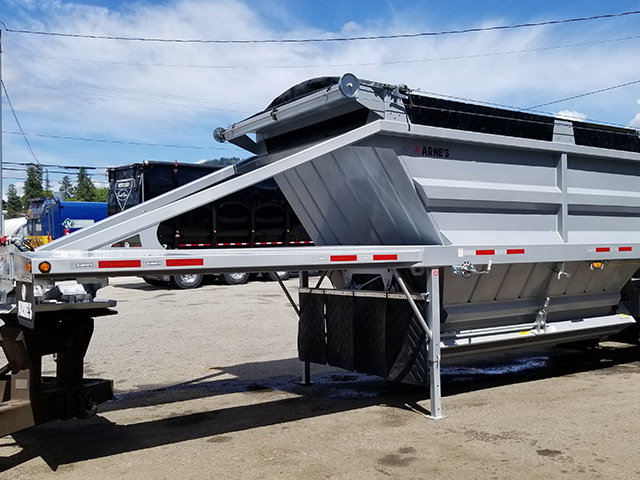

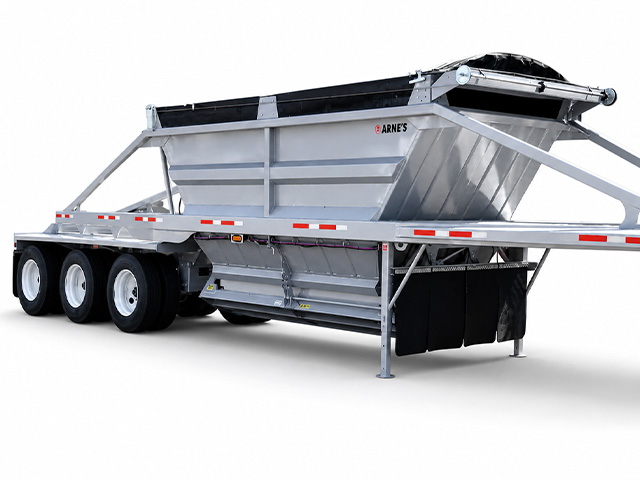

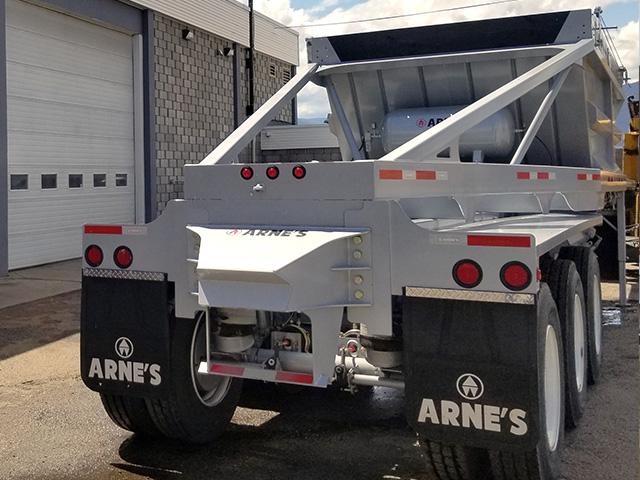

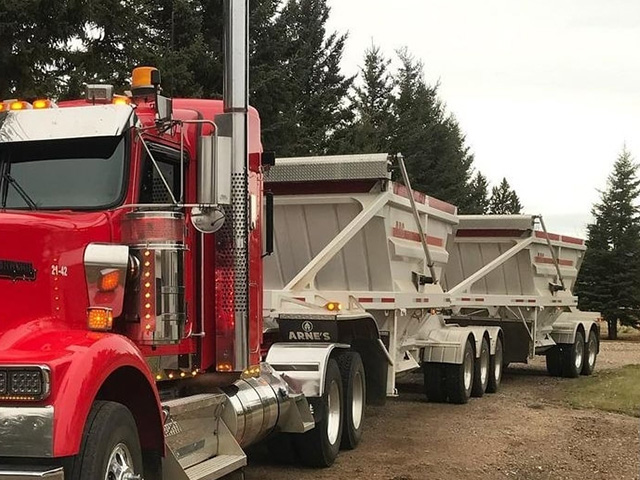

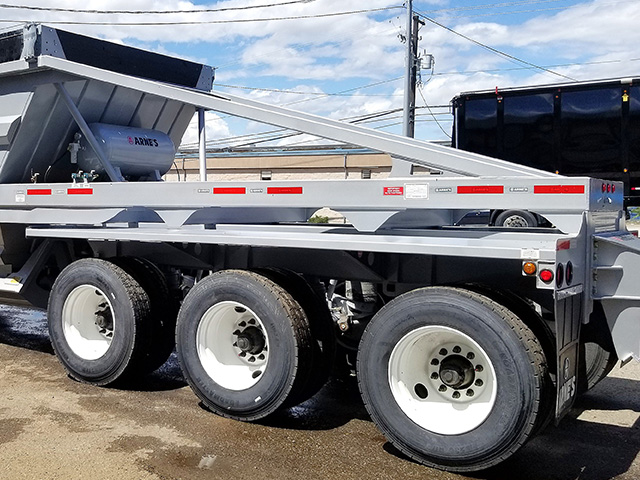

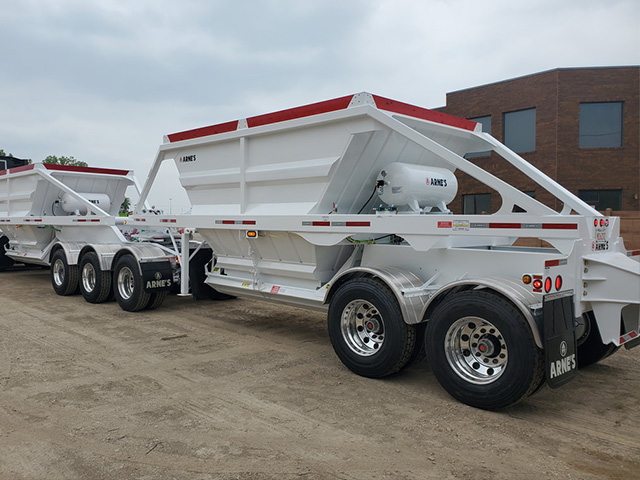

Built for maximum payload and dependable material flow, the Arne's Windrow Hopper combines a lightweight tubular frame, large clam-shell gates and proven durability for demanding aggregate, asphalt and road-building applications.
| Overall Height | 8' 6" |
| Overall Length | 10' 2" |
| Box Length | 42' 5" |
| Box Width | 94" Interior |
| Top Rail | 4" x 4" tubing top rail for extra strength |
| Main Rail | 4"x 8" rectangular tubing main rails |
| Box Front | 10-gauge 80,000 yield diagonal tube bracing |
| Box Sides | 12-gauge steel with full length horizontal rib, center vertical support rib for extra strength helps to prevent bowing. |
| Suspension | Formed C-channel subframe design |
| Kingpin & Plate | 3/8 oscillating plate mounted on heavy duty rubber bushings, 47" plate height |
| Sideboards | 2" x 12" spruce sideboards |
| Bumper | 4" x 8" vertical push posts |
| Rear Fenders | Formed 10 gauge fenders over tridem group |
| Landing Gear | Steel tubing pin-up style legs |
| Windrow (Clam) Gate | 51" x 100" gate opening with air actuated gate limiters |
| Gate Cylinders | Air actuated 8" gate cylinders |
| Gate Override | Air operated lever system will bypass set adjustment which allows gates to open fully for cleanout |
| Suspension | HT230 Air Ride, (cam enclosures included), brake pots mounted on top of axle |
| Axles | 77" track, 25,000 LB capacity per axle, oil seals |
| Brakes | Air, S-cam type, 16.5" x 7" fabricated shoes, spring set parking brake, automatic slack adjusters |
| ABS Brake System | 2S1M |
| Wheels | Unimount 10 hole wheels with Dura-Lite hubs and Centrifuse drums |
| Tires | 11R24.5 Cooper Roadmaster RM230 radial tires |
| Lights | LED, mid-ship turn lamps on box, standard 7-wire male socket |
